  • Mitsubishi 4B11 Image
  • Mitsubishi 4B11

  • Mitsubishi 4B11

    Standard Features

    • Average weight 32 lbs for billet crank
    • 8 counterweight design
    • 4340 steel certified by Callies in house Metallurgical lab
    • Ultra-Case nitriding performed and certified by Callies
    • Rod and main journal surface finish refined to 4Ra or less
    • All journals ground with strength enhancing Tru-Form radii
    • Limited stroke availability
    • Aeroshed finishing optional

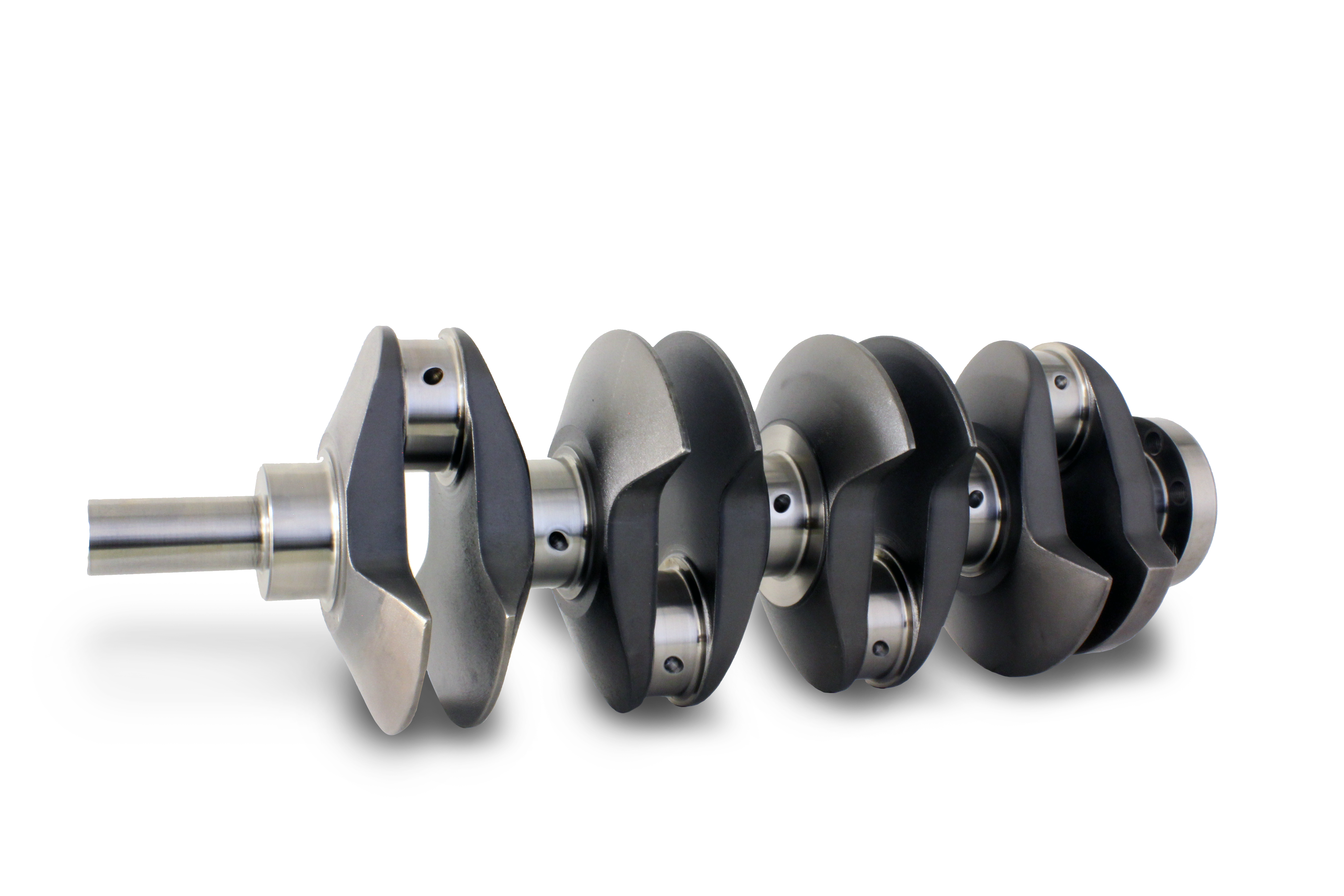

  • Compstar Mitsubishi 4B11 Billet Crankshafts



    Stroke  Main   Pin   Part #   Description
    94mm 52mm 52mm S23004 Billet
    96mm 52mm 52mm S23005 Billet
    98mm 52mm 52mm S23006 Billet



    Compstar Mitsubishi 4B11 H-Beam Connecting Rods



    Part # Length Journal Pin
    C23102   5.659/144mm 2.165/52mm 0.906/23mm
    C23102-CA   5.659/144mm 2.165/52mm 0.906/23mm



    Callies Ultra Enforcer I-Beam Connecting Rods



    Part # Length Journal Pin
    U16720-3.5   5.659/144mm 2.165/52mm 0.906/23mm
