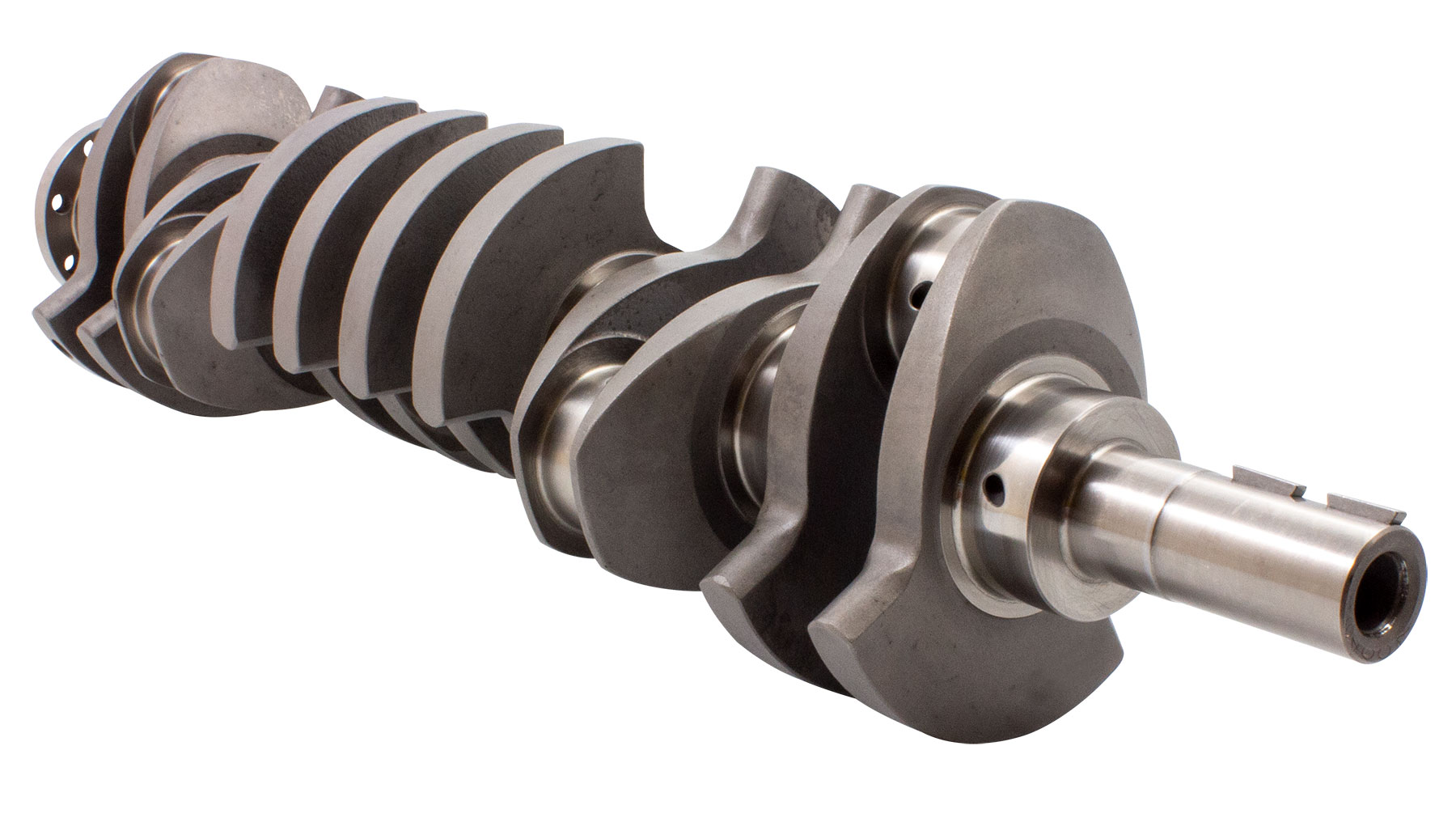

Machined as an enhancement to the formidable Toyota 2JZ engine, Compstar Sport Series crankshafts are your best choice for extreme durability. Beginning with high grade 4340 steel and finished with the proven Callies premium in house nitride treatment these crankshafts are start to finish the best available in today’s market. Available in three strokes, all 2JZ shafts are machined to accommodate standard rod and main journal sizes.
All SS cranks are sold balanced, ready for assembly. SS crankshafts by Compstar feature the best metallurgy and heat treatment on the market today.
Toyota 2JZ Crankshafts - Full Counterweight |
||||
| Stroke | Main | Pin | Part # | |
| 86mm | 62mm | 52mm | S27004 | |
| 91mm | 62mm | 52mm | S27005 | |
| 94mm | 62mm | 52mm | S27006 | |
Toyota 2JZ Crankshafts - Honda Pin |
||||
| Stroke | Main | Pin | Part # | |
| 86mm | 62mm | 47.95mm | S27007 | |
| 90mm | 62mm | 47.95mm | S27008 | |
| 91mm | 62mm | 47.95mm | S27009 | |
| 94mm | 62mm | 47.95mm | S27010 | |
| 96mm | 62mm | 47.95mm | S27011 | |
Toyota 2JZ Oil Pump Post Spline Gear also available - Part # 2JZ GEAR
|
||||
Toyota 2JZ - Ultra Enforcer Connecting Rod |
||||
| Rod Length | Pin | typical weight | Part # | Fastener |
| 5.590 | 52mm | 635g. | U18100-3.5 | 3/8" ARP 3.5 Multiphase |
| 5.590 | 47.95mm | 666g. | U18101 | 7/16" ARP H11 |
| Bearings, Pistons and Head Studs : | Also Available | |||
