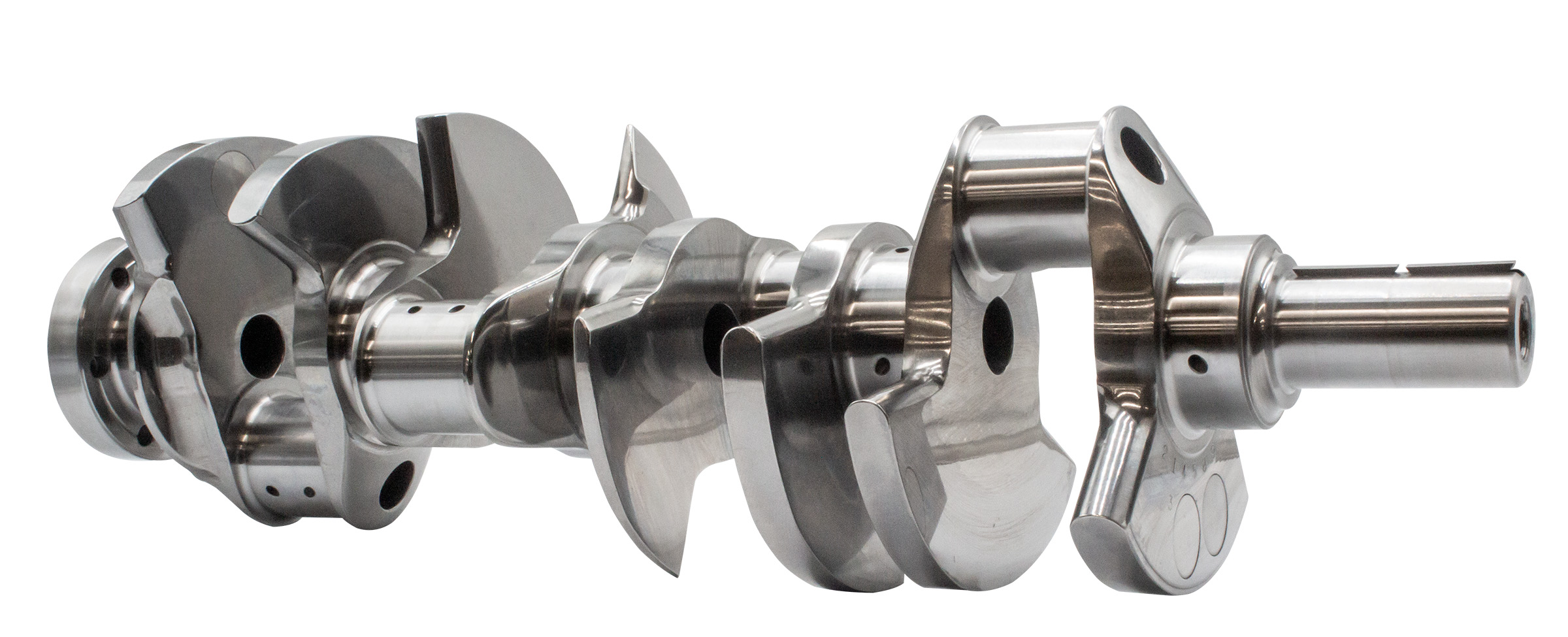

  • Magnum – Mopar Image
  • Magnum – Mopar

  • Magnum – Mopar

    Standard Features

    • Average weight for a 4.500” stroke balanced to 2350g Bob. = 64 lbs.
    • Gun drilled mains
    • All Rod Journals Lightened
    • Dual Post Keyways
    • Stroke availability 3.750” to 5.00"
    • Heat Treatment = Ultra Case Deep Nitride
    • Custom Flange Bolt & Dowel Drilling
    • 2.200 BB Chevy dia. & width, 2.375 Mopar rod journal diameter & width
  • Stroke Main Pin  Cammed for Rod Length Part #

    4.150 2.750 2.200 6.700 GE262J-MP
    4.250 2.750 2.200 6.700 GEP62J-MP
    4.500 2.750 2.200 7.100 GEQ62J-MP
    4.625 2.750 2.200 7.100 GER62J-MP
    4.750 2.750 2.200 7.100 GES62J-MP
  • « Back to Catalog
  • Magnum – Mopar Image
  • Magnum – Mopar

  • Magnum – Mopar

    Standard Features

    • Average weight for a 4.500” stroke balanced to 2350g Bob. = 64 lbs.
    • Gun drilled mains
    • All Rod Journals Lightened
    • Dual Post Keyways
    • Stroke availability 3.750” to 5.00"
    • Heat Treatment = Ultra Case Deep Nitride
    • Custom Flange Bolt & Dowel Drilling
    • 2.200 BB Chevy dia. & width, 2.375 Mopar rod journal diameter & width
  • Stroke Main Pin  Cammed for Rod Length Part #

    4.150 2.750 2.200 6.700 GE262J-MP
    4.250 2.750 2.200 6.700 GEP62J-MP
    4.500 2.750 2.200 7.100 GEQ62J-MP
    4.625 2.750 2.200 7.100 GER62J-MP
    4.750 2.750 2.200 7.100 GES62J-MP
  • « Back to Catalog
